Variants of digital clock display

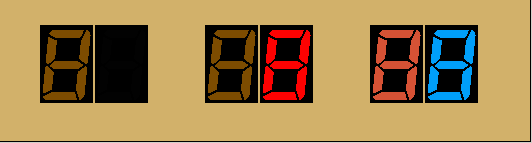

Both of these are still shots or animations of real-time clocks. Reading the colour-coded one is easy only for old-time electronic enthusiasts!
Both of these are still shots or animations of real-time clocks. Reading the colour-coded one is easy only for old-time electronic enthusiasts!
Needs you to save this image as a 24bit BMP..
nomainwin
WindowWidth = 580
WindowHeight = 200
graphicbox #w.g1 20, 10, 532, 143
global hdc, targetcolor, sepn, c$, p
sepn =55
open "7 segment demo" for window as #w
#w "trapclose [quit]"
hw =hwnd( #w.g1)
calldll #user32, "GetDC", hw as ulong, hdc as ulong
loadbmp "scr", "oneDigitO.bmp"
#w.g1 "down ; fill 210 177 106"
for d =0 to 7
if d <>2 and d<>5 then #w.g1 "down ; drawbmp scr "; 40 +d *sepn; " 25"
next d
#w.g1 "backcolor "; "220 220 80"
#w.g1 "color white" ' for debugging x,y positions
targetcolor = 0 ' this is the colour of the outline to fill out to.
x( 1) = 72: y( 1) = 35 ' coordinates to fill each bar from
x( 2) = 84: y( 2) = 48
x( 3) = 80: y( 3) = 84
x( 4) = 64: y( 4) = 96
x( 5) = 48: y( 5) = 83
x( 6) = 52: y( 6) = 50
x( 7) = 68: y( 7) = 65
bar$( 0) ="1111110"
bar$( 1) ="0110000"
bar$( 2) ="1101101"
bar$( 3) ="1111001"
bar$( 4) ="0110011"
bar$( 5) ="1011011"
bar$( 6) ="1011111"
bar$( 7) ="1110001"
bar$( 8) ="1111111"
bar$( 9) ="1111011"
col$( 0) =" 2 2 2"
col$( 1) ="125 76 0"
col$( 2) ="253 2 2"
col$( 3) ="214 82 53"
col$( 4) ="254 254 0"
col$( 5) =" 1 174 6"
col$( 6) =" 0 159 249"
col$( 7) ="186 120 231"
col$( 8) ="152 152 152"
col$( 9) ="253 253 253"
now =time$( "seconds")
c =0
do
scan
calldll #kernel32, "Sleep", 400 as ulong, r as void
c$ =time$()
for p =1 to 8
if mid$( c$, p, 1) <>":" then call displayAsSevenSeg, p, 8 ' character position ( 1 =LHS) and char number to display
next p
#w.g1 "getbmp scr2 0 0 532 143"
bmpsave "scr2", "ccode" +right$( "000" +str$( c), 3) +".bmp"
c =c +1
loop until ( time$( "seconds") -now) >100
wait
sub displayAsSevenSeg charNum, displayChar ' character number ( 1 =LHS) and number to display
for b =1 to 7
x =x( b) +( charNum -1) *sepn
y =y( b)
d$ =bar$( displayChar)
if mid$( d$, b, 1) ="1" then
#w.g1 "backcolor "; col$( val( mid$( c$, p, 1)))
else
#w.g1 "backcolor 72 72 72"
end if
calldll #gdi32, "ExtFloodFill", hdc as ulong, x as long, y as long, targetcolor as long, _FLOODFILLBORDER as long, result as long
'#w.g1 "set "; x; " "; y ' for debugging x,y positions
next b
end sub
[quit]
calldll #user32, "ReleaseDC", hw as ulong, hdc as ulong, ret as void 'release the DC
close #w
end

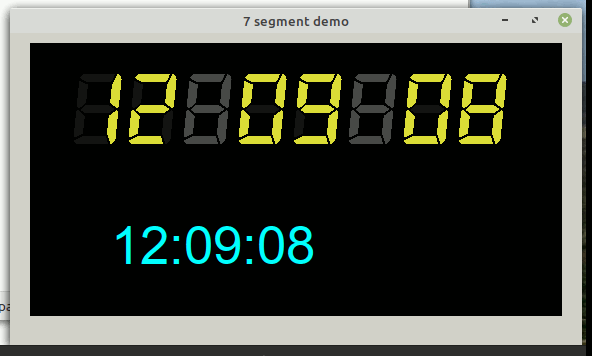

nomainwin
WindowWidth = 580
WindowHeight = 340
graphicbox #w.g1 20, 10, 532, 273
global hdc, targetcolor, sepn
sepn =55
open "7 segment demo" for window as #w
#w "trapclose [quit]"
hw =hwnd( #w.g1)
calldll #user32, "GetDC", hw as ulong, hdc as ulong
loadbmp "scr", "oneDigit.bmp"
#w.g1 "down ; fill black"
for d =0 to 7
#w.g1 "down ; drawbmp scr "; 40 +d *sepn; " 25"
next d
#w.g1 "backcolor "; "220 220 80"
#w.g1 "color white" ' for debugging x,y positions
targetcolor = 0 ' this is the colour of the outline to fill out to.
x( 1) = 72: y( 1) = 35 ' coordinates to fill each bar from
x( 2) = 84: y( 2) = 48
x( 3) = 80: y( 3) = 84
x( 4) = 64: y( 4) = 96
x( 5) = 48: y( 5) = 83
x( 6) = 52: y( 6) = 50
x( 7) = 68: y( 7) = 65
bar$( 0) ="1111110"
bar$( 1) ="0110000"
bar$( 2) ="1101101"
bar$( 3) ="1111001"
bar$( 4) ="0110011"
bar$( 5) ="1011011"
bar$( 6) ="1011111"
bar$( 7) ="1110001"
bar$( 8) ="1111111"
bar$( 9) ="1111011"
now =time$( "seconds")
do
scan
calldll #kernel32, "Sleep", 200 as ulong, r as void
c$ =time$()
for p =1 to 8
if mid$( c$, p, 1) <>":" then call displayAsSevenSeg, p, val( mid$( c$, p, 1)) ' character position ( 1 =LHS) and char number to display
next p
call sevenSegDisplay 80, 220, "cyan", 40, c$
loop until ( time$( "seconds") -now) >100
wait
sub displayAsSevenSeg charNum, displayChar ' character number ( 1 =LHS) and number to display
for b =1 to 7
x =x( b) +( charNum -1) *sepn
y =y( b)
if mid$( bar$( displayChar), b, 1) ="1" then
#w.g1 "backcolor 220 220 60"
else
#w.g1 "backcolor 20 20 20"
end if
calldll #gdi32, "ExtFloodFill", hdc as ulong, x as long, y as long, targetcolor as long, _FLOODFILLBORDER as long, result as long
'#w.g1 "set "; x; " "; y ' for debugging x,y positions
next b
end sub
wait
[quit]
calldll #user32, "ReleaseDC", hw as ulong, hdc as ulong, ret as void 'release the DC
close #w
end
sub sevenSegDisplay x, y, col$, size, dispData$
#w.g1 "up ; goto "; x -70; " "; y -90
#w.g1 "down ; backcolor black ; color black"
#w.g1 "boxfilled 500 240"
#w.g1 "up ; goto "; x; " "; y
#w.g1 "color "; col$
#w.g1 "font Digital-7_Italic "; size
#w.g1 "\" +dispData$
end sub
