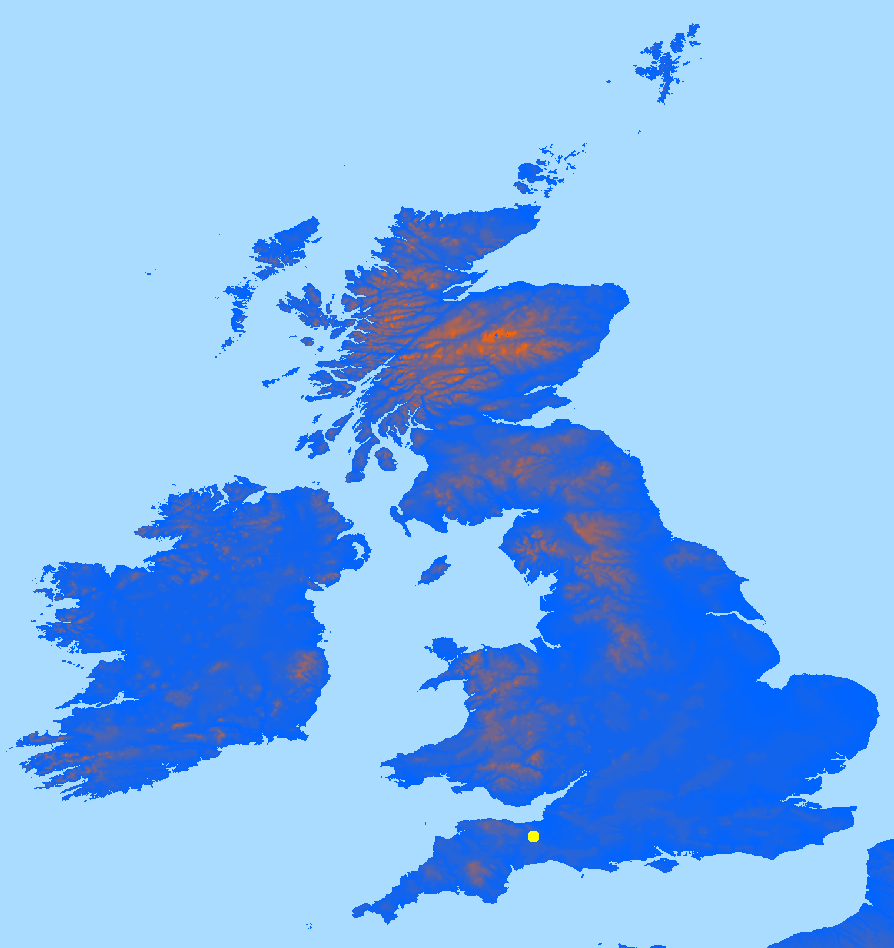

Displaying geographical elevation data
nomainwin
open "W020N90.DEM" for input as #fileIn
dataFile$ =input$( #fileIn, lof( #fileIn))
timer 20000, [o]
wait
[o]
timer 0
close #fileIn
UpperLeftX = 20
UpperLeftY = 20
WindowWidth =1250
WindowHeight =1050
open "Display data" for graphics_nf_nsb as #w
#w "trapclose [quit]"
#w "down ; fill black"
index =0
c =0
' data is HiLo. Elevations in metres 1 --> 9000 or so.
' $d8 $f1 everywhere at sea level ( or no data available) ( doc'n says -9999????)
' 16-bit signed integer data in a simple binary raster, ie two bytes per coordinate.
' $00 $03 represents +3m asl; $00 $23 represents +35m; $01 $23 represents +288m.
' NROWS 6000
' NCOLS 4800
' The data are stored in row major order (all the data for row 1, followed by all the data for row 2, etc.).
ww =1700
x1 =1100: x2 =x1 +ww ' select square area of UK
y1 =3450: y2 =y1 +ww
for downCol =y1 to y2 step ( y2 -y1) /1000
for alongRow =x1 to x2 step ( x2 -x1) /800
index = 1 +int( alongRow) *2 +int( downCol) *9600
highByte = asc( mid$( dataFile$, index, 1))
if highByte <128 then
lowByte = asc( mid$( dataFile$, index +1, 1))
wordValue = 256 *highByte +lowByte
'print alongRow, downCol, wordValue
c =int( wordValue /4)
col$ =str$( c); " 100 "; str$( 255 -c)
else
col$ ="170 220 255"
end if
#w "color "; col$
#w "set "; 20 +800 *( alongRow -x1) /( x2 -x1); " "; 20 +1000 *( downCol -y1) /( y2 -y1)
scan
next alongRow
#w "flush"
next downCol
#w "flush"
wait
[quit]
close #w
end
