# Colour experiments in LB

I was prompted by Rosetta Code suggested tasks- and natural curiosity- to play with RGB and HSL ways of displaying and specifying colour. It was also related to graphic exercises where I wanted repeated cycling through a range of colours.

Some of the results were unexpected.

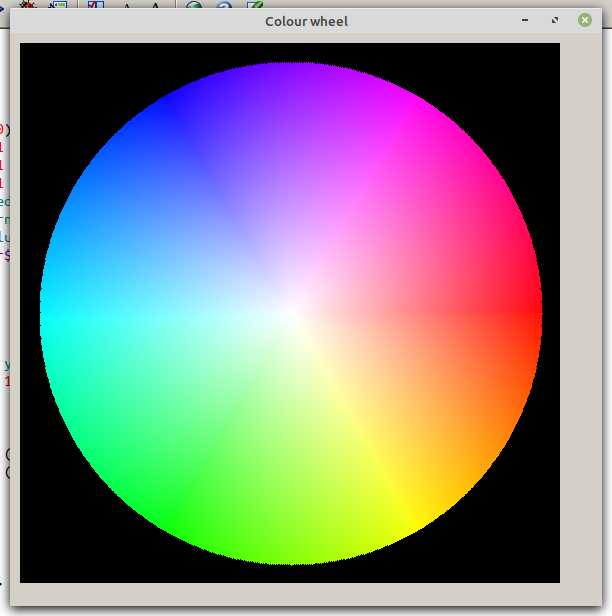

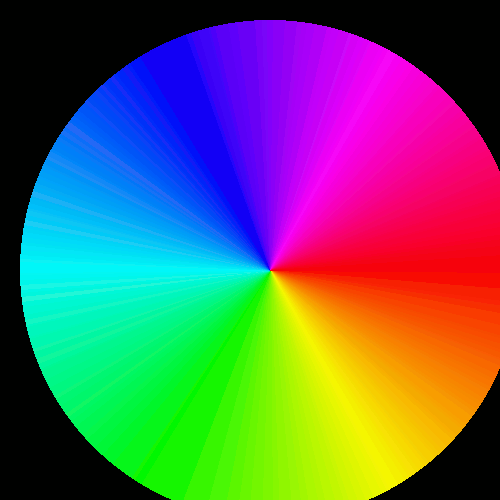

## Typical LB code

```

'   to-do's  step 2 degrees and use fill?

nomainwin

global hdc, col\$

WindowWidth  =600
WindowHeight =600

graphicbox #w.gb, 10, 10, 540, 540

open "Colour wheel" for window as #w

h = hwnd( #w.gb)
calldll #user32, "GetDC", h as ulong, hdc as ulong

#w "trapclose quit"

#w.gb "down ; fill 0 0 0 ; size 3 ; flush"

pi     =4 *atn( 1)

for angle =0 to 359.998 step 0.5
sector =int( angle /60)
slope =10 +4 *( angle mod 60)
scan

select case sector
case 0
col\$ ="255 " +str\$( int( slope)) +" 0"
case 1
col\$ =str\$( int( 256 -slope)) +" 255 0"
case 2
col\$ ="0 255 " +str\$( int( slope))
case 3
col\$ ="0 "; str\$( int( 256 -slope)) +" 255"
case 4
col\$ =str\$( int( slope)) +" 0 255"
case 5
col\$ ="255 0 " +str\$( int( 256 -slope))
end select

call bresenham int( 270 +radius *cos( angle /180 *pi)), int( 270 +radius *sin( angle /180 *pi)), 270, 270
next angle

#w.gb "flush ; getbmp scr 0 0 500 500"
bmpsave "scr", "colWheel" +str\$( time\$( "seconds")) +".bmp"

wait

sub bresenham x1, y1, x2, y2    '    Inputs are x1, y1, x2, y2: destroys value of x1, y1
'X1 =x1: Y1 =y1
dx  = abs( x2 - x1): sx = -1: if x1 < x2 then sx = 1
dy  = abs( y2 - y1): sy = -1: if y1 < y2 then sy = 1

er  = 0 -dy: if dx > dy then er = dx
er  = int( er / 2)

red =val( word\$( col\$, 1))
grn =val( word\$( col\$, 2))
blu =val( word\$( col\$, 3))

[more]
R =(( x1 -270)^2 +( y1 -270)^2)^0.5 /256   '   fade components up to full white centre
redR =int( R *255 +red *( 1 -R))
grnR =int( R *255 +grn *( 1 -R))
bluR =int( R *255 +blu *( 1 -R))
redR =int( ( 1 -R) *255 +red *( R))
grnR =int( ( 1 -R) *255 +grn *( R))
bluR =int( ( 1 -R) *255 +blu *( R))
c\$   =str\$( redR) +" " +str\$( grnR) +" " +str\$( bluR)
#w.gb  "color " +c\$
#w.gb "set "; x1; " "; y1

scan

if ( ( x1 = x2) and ( y1 = y2))                              then exit sub
if ( ( x2 > 540) or ( x2 < 10) or ( y2 > 540) or ( y2 < 10)) then exit sub    '   should not happen!

e2  = er

if ( e2 > 0 -dx) then er = ( er - dy): x1 = ( x1 + sx)
if ( e2 <    dy) then er = ( er + dx): y1 = ( y1 + sy)
goto [more]

end sub

function getPixel( x, y)
calldll #gdi32, "GetPixel", hdc as ulong, x as long, y as long, pixcol as ulong
getPixel =pixcol
end function

sub quit h\$
close #h\$
calldll #user32, "ReleaseDC", hw as ulong, hdc as ulong   'release the DC
end
end sub
```

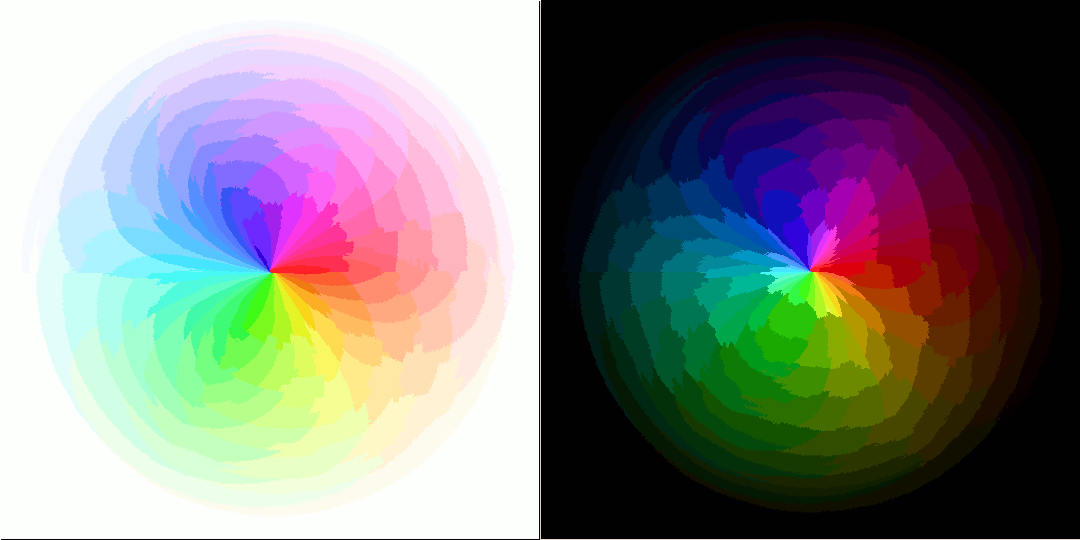

```
'   **    colourWheelRethink2.bas   ***

'   **    raster scan resulting image and calculate angle and radius to find appropriate colour RGB components

nomainwin

global hdc, col\$, pi
pi           =4 *atn( 1)
ptSize       =1

WindowWidth  =600
WindowHeight =600

graphicbox #w.gb, 10, 10, 540, 540

open "Colour wheel" for window as #w

h       =hwnd( #w.gb)
calldll #user32, "GetDC", h as ulong, hdc as ulong

#w "trapclose quit"

#w.gb "down ; fill white ; size "; ptSize; " ; font Ubuntu_Mono 12"
#w.gb "when leftButtonDown [getPixel]"

for x =0 to 518 step ptSize
for y =0 to 520 step ptSize
angle   =atan2( y -250, x -250) *360 / 2 /pi        '   Angle in degrees round full circle....
sector  =int( angle /60)                            '       ...split into six 60 degree sectors, labelled 0 to 5
slope   =( angle mod 60) /60 *255                   '       ...and each split into 1 degree sectors.
scan

select case sector
case 0
col\$    ="255 ";                    str\$( int( slope));      "   0"
case 1
col\$    =str\$( int( 256 -slope)); " 255                          0"
case 2
col\$    ="0                         255 ";                     str\$( int( slope))
case 3
col\$    ="0 ";                      str\$( int( 256 -slope)); " 255"
case 4
col\$    =str\$( int( slope));    "     0                        255"
case 5
col\$    ="255                         0 ";                     str\$( int( 256 -slope))
end select

red     =val( word\$( col\$, 1)): grn =val( word\$( col\$, 2)): blu =val( word\$( col\$, 3))

R       =( ( x -270)^2 +( y -270)^2)^0.5 /250

redR    =R *int( red): grnR =R *int( grn): bluR =R *int( blu)     '   fade to rim black

#w.gb "color "; str\$( redR) +" " +str\$( grnR) +" " +str\$( bluR)
if R >1 then  #w.gb "color white"
#w.gb "set "; x; " "; y
next y
next x

#w.gb "flush ; getbmp scr 0 0 540 540"

wait

[getPixel]
xx      =MouseX
yy      =MouseY
calldll #gdi32, "GetPixel", hdc as ulong, xx as long, yy as long, pixcol as ulong
#w.gb "up ; goto 20 20 ; down ; color black"
#w.gb "\ " +right\$( "          " +str\$( pixcol), 10) +" "
wait

sub quit h\$
close #h\$
calldll #user32, "ReleaseDC", hw as ulong, hdc as ulong   'release the DC
end
end sub

function atan2( y, x)
result\$     ="Undetermined"
If ( x =0) and ( y >0) then atan2 = pi /2:      result\$ ="Determined"
if ( x =0) and ( y <0) then atan2 =3 * pi /2:   result\$ ="Determined"
if ( x >0) and ( y =0) then atan2 =0:           result\$ ="Determined"
if ( x <0) and ( y =0) then atan2 =pi:          result\$ ="Determined"

If result\$ <>"Determined" then
if x =0 and y =0 then
atan2 =0
else
baseAngle =atn( abs( y) /abs( x))
If ( x >0) and ( y >0) then atan2 =       baseAngle
If ( x <0) and ( y >0) then atan2 = pi   -baseAngle
If ( x <0) and ( y <0) then atan2 = pi   +baseAngle
If ( x >0) and ( y <0) then atan2 = 2*pi -baseAngle
end if
end if
end function

```

```

'   to-do's  step 2 degrees and use fill?

nomainwin

global hdc, col\$

WindowWidth  =600
WindowHeight =600

graphicbox #w.gb, 10, 10, 540, 540

open "Colour wheel" for window as #w

h = hwnd( #w.gb)
calldll #user32, "GetDC", h as ulong, hdc as ulong

#w "trapclose quit"

#w.gb "down ; fill 0 0 0 ; size 3 ; flush"

pi     =4 *atn( 1)

for angle =0 to 359.998 step 0.5
sector =int( angle /60)
slope =10 +4 *( angle mod 60)
scan

select case sector
case 0
col\$ ="255 " +str\$( int( slope)) +" 0"
case 1
col\$ =str\$( int( 256 -slope)) +" 255 0"
case 2
col\$ ="0 255 " +str\$( int( slope))
case 3
col\$ ="0 "; str\$( int( 256 -slope)) +" 255"
case 4
col\$ =str\$( int( slope)) +" 0 255"
case 5
col\$ ="255 0 " +str\$( int( 256 -slope))
end select

call bresenham int( 270 +radius *cos( angle /180 *pi)), int( 270 +radius *sin( angle /180 *pi)), 270, 270
next angle

#w.gb "flush ; getbmp scr 0 0 500 500"
bmpsave "scr", "colWheel" +str\$( time\$( "seconds")) +".bmp"

wait

sub bresenham x1, y1, x2, y2    '    Inputs are x1, y1, x2, y2: destroys value of x1, y1
'X1 =x1: Y1 =y1
dx  = abs( x2 - x1): sx = -1: if x1 < x2 then sx = 1
dy  = abs( y2 - y1): sy = -1: if y1 < y2 then sy = 1

er  = 0 -dy: if dx > dy then er = dx
er  = int( er / 2)

red =val( word\$( col\$, 1))
grn =val( word\$( col\$, 2))
blu =val( word\$( col\$, 3))

[more]
R =(( x1 -270)^2 +( y1 -270)^2)^0.5 /256   '   fade components up to full white centre
redR =int( R *255 +red *( 1 -R))
grnR =int( R *255 +grn *( 1 -R))
bluR =int( R *255 +blu *( 1 -R))
redR =int( ( 1 -R) *255 +red *( R))
grnR =int( ( 1 -R) *255 +grn *( R))
bluR =int( ( 1 -R) *255 +blu *( R))
c\$   =str\$( redR) +" " +str\$( grnR) +" " +str\$( bluR)
#w.gb  "color " +c\$
#w.gb "set "; x1; " "; y1

scan

if ( ( x1 = x2) and ( y1 = y2))                              then exit sub
if ( ( x2 > 540) or ( x2 < 10) or ( y2 > 540) or ( y2 < 10)) then exit sub    '   should not happen!

e2  = er

if ( e2 > 0 -dx) then er = ( er - dy): x1 = ( x1 + sx)
if ( e2 <    dy) then er = ( er + dx): y1 = ( y1 + sy)
goto [more]

end sub

function getPixel( x, y)
calldll #gdi32, "GetPixel", hdc as ulong, x as long, y as long, pixcol as ulong
getPixel =pixcol
end function

sub quit h\$
close #h\$
calldll #user32, "ReleaseDC", hw as ulong, hdc as ulong   'release the DC
end
end sub
```

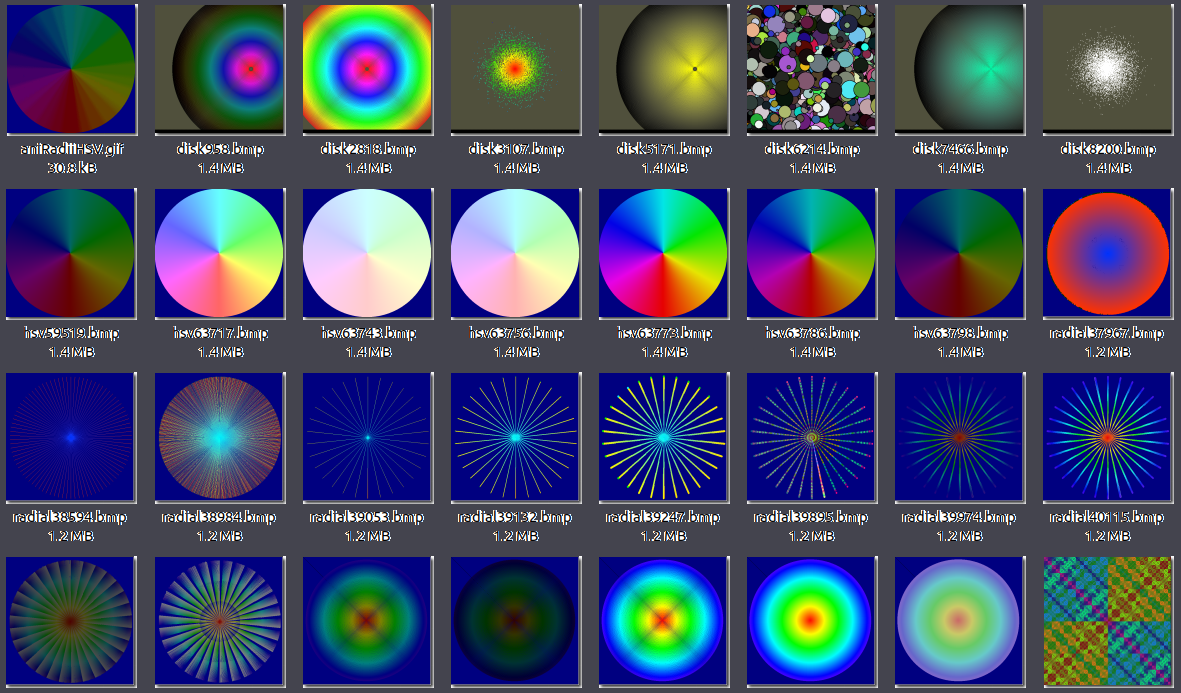

## HSV versus RGB

The only thing to remember is that hue varies 0 to 360, while saturation and value are between 0 and 0.9999.

Works nicely with LB graphic commands and with LB Bresenham routine ( see RC) you can draw very easily lines from A to B whose colour varies along their length.

```    nomainwin

global pi, col\$: pi   =3.14158265

WindowWidth     =570
WindowHeight    =600
UpperLeftX      =int( ( DisplayWidth  -WindowWidth)  /2)
UpperLeftY      =int( ( DisplayHeight -WindowHeight) /2)

graphicBox #w.g, 9, 9, 537, 537

open "Ring fade demo" for window as #w

#w   "trapClose quit"

#w.g "down; fill darkblue ; goto 267 267"
#w.g "size 2"

for R =1 to 255 step 0.25
call hsv2rgb R, 0.49, 0.79    '   hue, saturation, value
#w.g "color "; col\$
#w.g  "circle "; R
scan
next R

#w.g "getbmp scr 1 1 537 537"
bmpsave "scr", "ring" +str\$( time\$( "seconds")) +".bmp"

wait

sub hsv2rgb h, s, v '                       hue 0-360, saturation 0-1, value 0-1
c   =v *s       '                           chroma
h   =h
x   =c *( 1 -abs( ( ( h /60) mod 2) -1))
m   =v -c   '                               matching adjustment

select case
case h < 60
r = c: g = x: b = 0
case h <120
r = x: g = c: b = 0
case h <180
r = 0: g = c: b = x
case h <240
r = 0: g = x: b = c
case h <300
r = x: g = 0: b = c
case else
r = c: g = 0: b = x
end select

rd      = abs( int( 256 *( r + m)))
gn      = abs( int( 256 *( g + m)))
bu      = abs( int( 256 *( b + m)))
col\$    =right\$( "  " +str\$( rd), 3) +" " +right\$( "   " +str\$( gn), 3) +" " +right\$( "   " +str\$( bu), 3)

end sub

sub quit handle\$
close #w
end
end sub
```

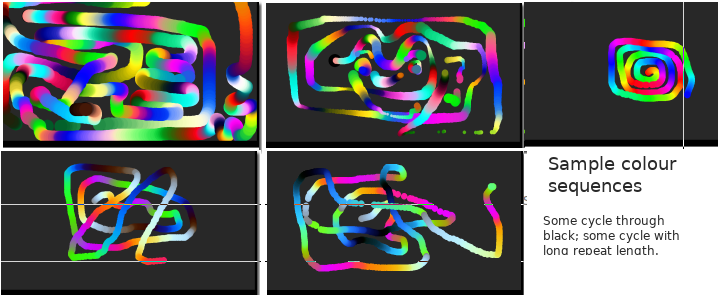

## Using sequential colours

```    nomainwin

global col\$, i

i            = 0

WindowWidth  = 1200
WindowHeight =  700

menu #wg, "File", "Save", [save], "Reverse", [reverse]

open "The tooth(paste) fairy paints again!!" for graphics_nsb as #wg

#wg "when leftButtonMove [paint]"
#wg "down ; fill 40 40 40 ; backcolor 40 40 40 ; size 30"
wait

[paint]
#wg "set "; MouseX; " "; MouseY
i           =( i + 1) mod 360
'call hsv2rgb i, 0.99, 0.99
call sinRGB 1, 2.3, 3.7
#wg "color "; col\$
'print col\$
scan
wait
[save]
#wg "getbmp scr 0 0 1200 700"
bmpsave "scr", "message" +str\$( time\$( "seconds")) +".bmp"
wait

[reverse]
incr =-1 *incr
wait

sub sinRGB u, v, w
rd = int( 128 +127 *sinRad( u *i))
gn = int( 128 +127 *sinRad( v *i))
bu = int( 128 +127 *sinRad( w *i))
col\$    =right\$( "  " +str\$( rd), 3) +" " +right\$( "   " +str\$( gn), 3) +" " +right\$( "   " +str\$( bu), 3)
end sub

sub hsv2rgb h, s, v '                       hue 0-360, saturation 0-1, value 0-1
c   =v *s       '                           chroma
h   =h
x   =c *( 1 -abs( ( ( h /60) mod 2) -1))
m   =v -c   '                               matching adjustment

select case
case h < 60
r = c: g = x: b = 0
case h <120
r = x: g = c: b = 0
case h <180
r = 0: g = c: b = x
case h <240
r = 0: g = x: b = c
case h <300
r = x: g = 0: b = c
case else
r = c: g = 0: b = x
end select

rd      = abs( int( 256 *( r + m)))
gn      = abs( int( 256 *( g + m)))
bu      = abs( int( 256 *( b + m)))
col\$    =right\$( "  " +str\$( rd), 3) +" " +right\$( "   " +str\$( gn), 3) +" " +right\$( "   " +str\$( bu), 3)
'print col\$
end sub

function getPixel( x, y)
calldll #gdi32, "GetPixel", hdc as ulong, x as long, y as long, pixcol as ulong
getPixel =pixcol
end function
