LB's inbuilt turtle commands are great, but store turtle location and heading only as integers. As a result errors accumulate if you have a whole chain of calculated moves.
By writing code to store turtle position and heading as floats, thse errors disappear.
nomainwin
WindowWidth =800: WindowHeight =700
graphicbox #w.gb, 0,0,800,700

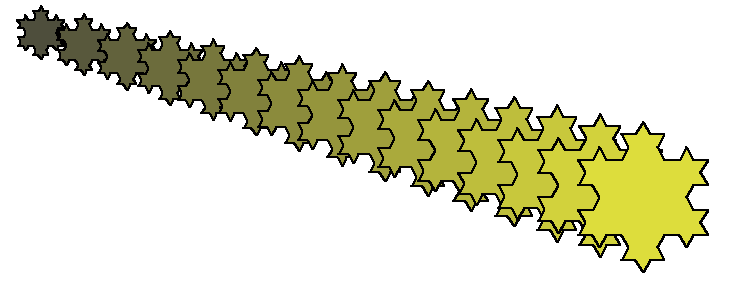

open "Demo Koch Snowflake" for window as #w
hw =hwnd( #w.gb)
calldll #user32, "GetDC", hw as ulong, hdc as ulong
#w "trapclose quit"
global x, y, tx, ty, otx, oty, ta, targetcolor
tx =0: ty =0: ta =0 ' turtle ( x, y) and heading in degrees
otx =0: oty =0
targetcolor =1
for i =1 to 15
if targetcolor =0 then targetcolor =1 else targetcolor =0
ta =0
x = 0 + 40 *i
y = 20 + 10 *i
otx =x: oty =y
#w.gb "up ; goto "; tx; " "; ty; " ; down ; size 2"
#w.gb "color "; targetcolor; " 0 0"
l = 40 +6 *i
d = 2
for side =1 to 3
call f l, d
ta =ta +120 '#w.gb "turn 120"
next side
r =l /150 *255' int( 50 +200 *rnd( 1))
#w.gb "backcolor "; r; " "; r; " 60"
#w.gb "color red"
xS =x +7: yS =y +3
#w.gb "down ; size 1 ; set "; x +7; " "; y +3; " ; up ; size 2"
'goto [skip]
calldll #gdi32, "ExtFloodFill",_
hdc as ulong,_ ' handle of graphic window
xS as long,_ ' x-origin of fill
yS as long,_ ' y-origin of fill
targetcolor as long,_ ' boundary colour
_FLOODFILLBORDER as long,_ ' ie fill out 'til the above colour is met...
result as long
[skip]
next i
#w.gb "getbmp scr 1 1 800 700"
bmpsave "scr", "KochTurtle" +str$( time$( "seconds")) +".bmp"
wait
sub quit h$
close #h$
calldll #user32, "ReleaseDC", hw as ulong, hdc as ulong 'release the DC
end
end sub
sub f length, depth
scan
if depth <= 0 then
tx =otx +length *cosR( ta)
ty =oty +length *sinR( ta) '#w.gb "go "; int( length)
#w.gb "down ; line "; otx; " "; oty; " "; tx; " "; ty; " ; up"
else
call f length /3, depth -1: ta =ta -60' #w.gb "turn -60"
call f length /3, depth -1: ta =ta +120' #w.gb "turn 120"
call f length /3, depth -1: ta =ta -60' #w.gb "turn -60"
call f length /3, depth -1
end if
otx =tx: oty =ty
end sub
function cosR( th)
cosR =cos( th *2 *3.14159265 /360)
end function
function sinR( th)
sinR =sin( th *2 *3.14159265 /360)
end function
